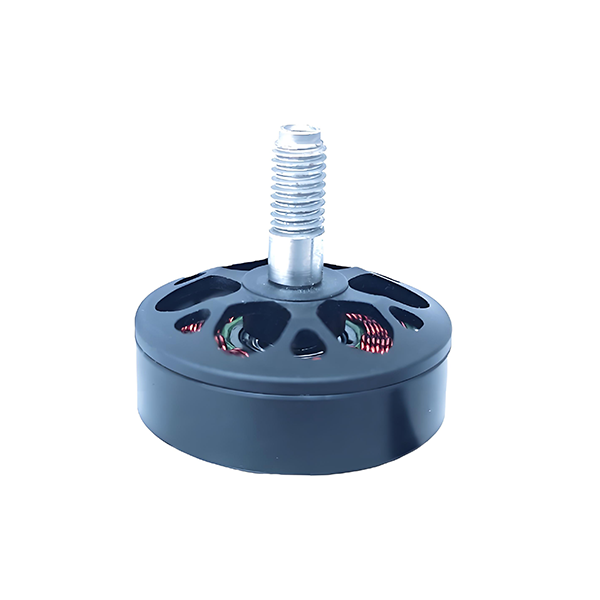

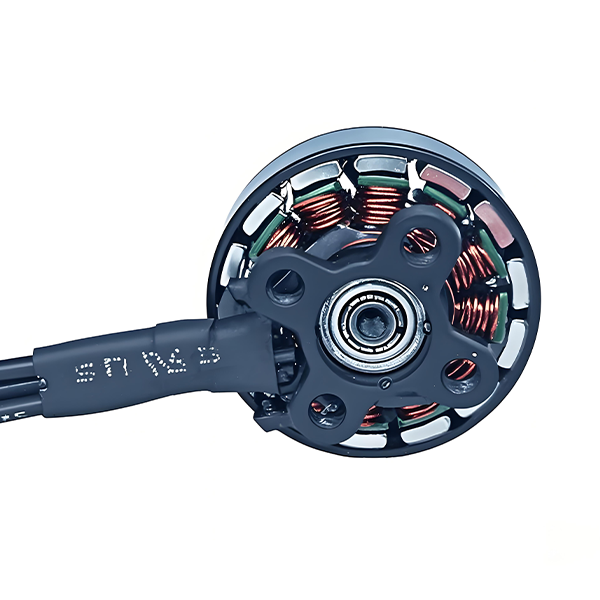

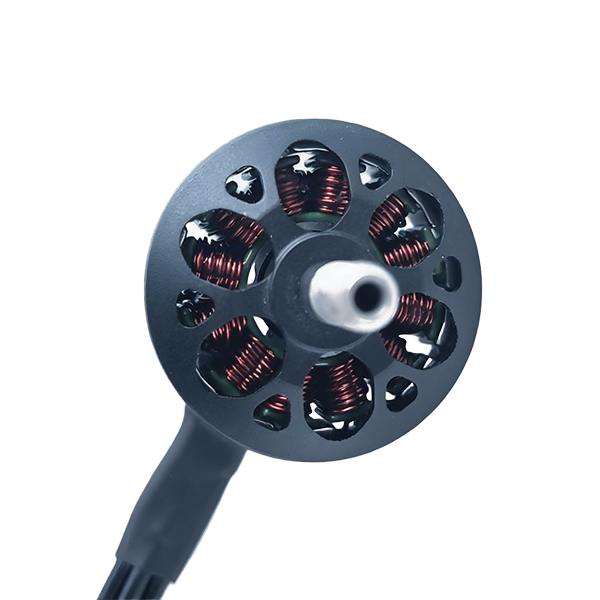

The stator diameter of the 2306 brushless DC motor is 23mm and the height is 6mm. Its core advantage lies in achieving a balance between high efficiency, lightweight and durability through material innovation such as titanium alloy (N52H magnet), structural optimization (hollow shaft, Uni-Bell) and scene adaptation (KV value classification). At the same time, it meets the requirements of wide compatibility and high cost performance from covert detection by micro unmanned aerial vehicles, as well as cluster performances and micro-scanning, etc.
Features :
- Ultimate miniaturization and lightweighting
- Ultra-high-speed response and low power consumption
- Silence and concealment
- It is applied to nanoscale micro unmanned aerial vehicles, swarm unmanned aerial vehicle systems, and micro radar scanning drives.
| KV value: |
1750 KV |
| No-load current: |
1.37 A / 10 V |
| Maximum current: |
35.2 A |
| Maximum power: |
873 W |
| Maximum pulling force: |
1620 g |
| Motor weight: |
32 g |
| Motor size: |
Φ28.2 * 32.2 mm |
| Slot-pole number: |
12N14P |
| Outlet wire specification: |
150 mm |
| Shaft diameter: |
4 mm |
| Weight of the packaged product: |
49 g |
| Internal resistance between phases: |
72 mΩ |
