> High performance industrial grade brushless motor

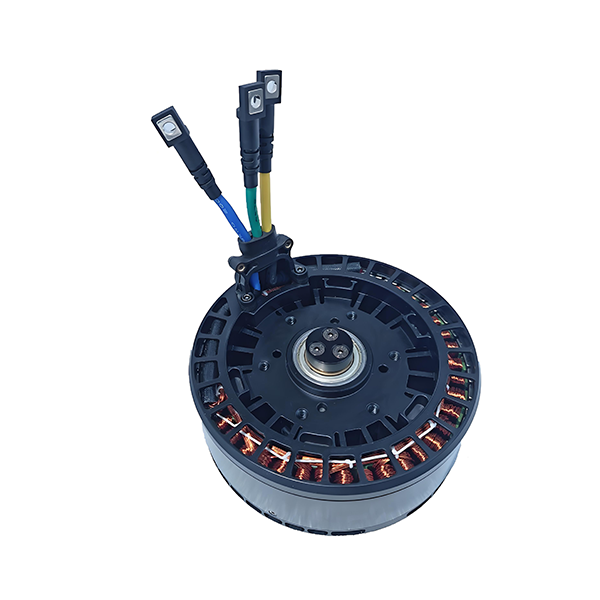

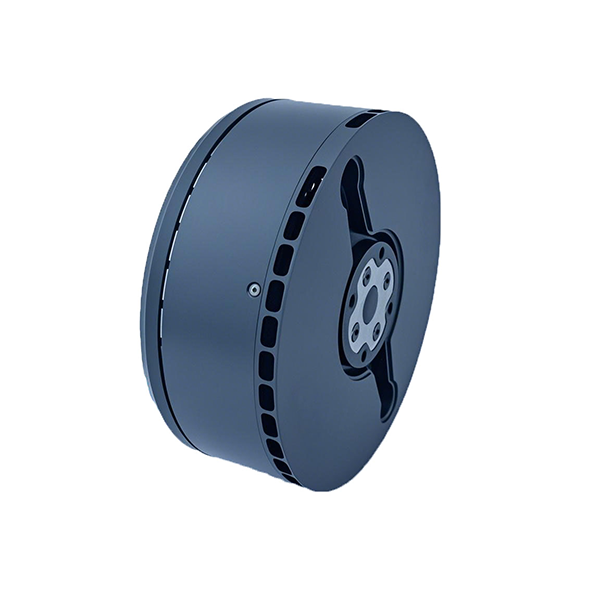

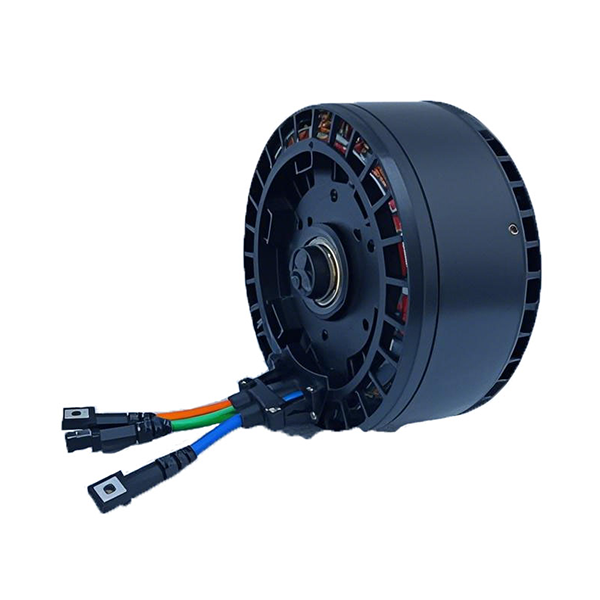

High – Torque & Long – Lasting Brushless DC MotorB13

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design
Send Inquiry
  • Overview
  • Parameter
  • Download
  • Similar Products
  • Recommended Combinations

B13 motor is designed for heavy-lifting drones requiring high thrust and long service life. The core advantages of Huazhou plant protection motors lie in their high-efficiency power output, strong environmental tolerance, intelligent protection and low usage cost. These features make them the preferred power solution in the field of agricultural plant

Features :

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design

Applied to logistics drones transport heavy goods (e.g., medical supplies, industrial equipment), or to a wide range of agricultural UVA with high-capacity pesticide spraying.

Rated Current 105A
Rated Speed 1700RPM
Rated Power 4100W
Rated Torque 18-19Nm
No – load Current ≤5.0
No – load Speed 1700RPM
Motor Internal Resistance 16±3
All Machine Weight 2010g
Motor Inductance 13±4
Number of Slot Poles 14N46P
Operating Temperature -10℃~65℃
Overall Machine Outer Diameter (mm) Ф144.6±0.2
