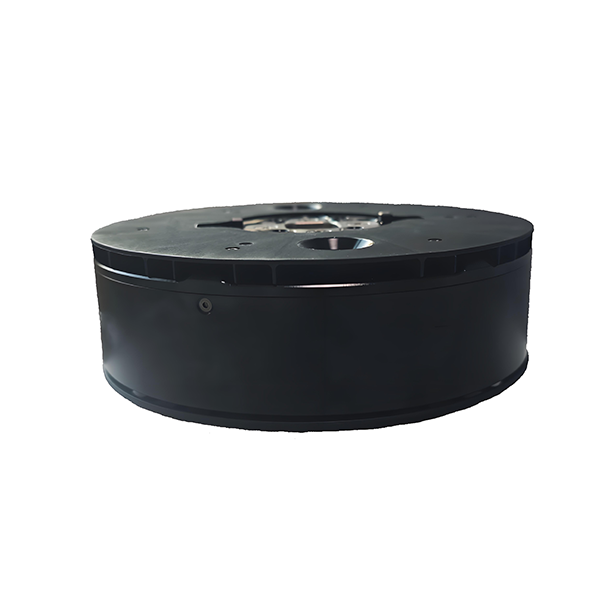

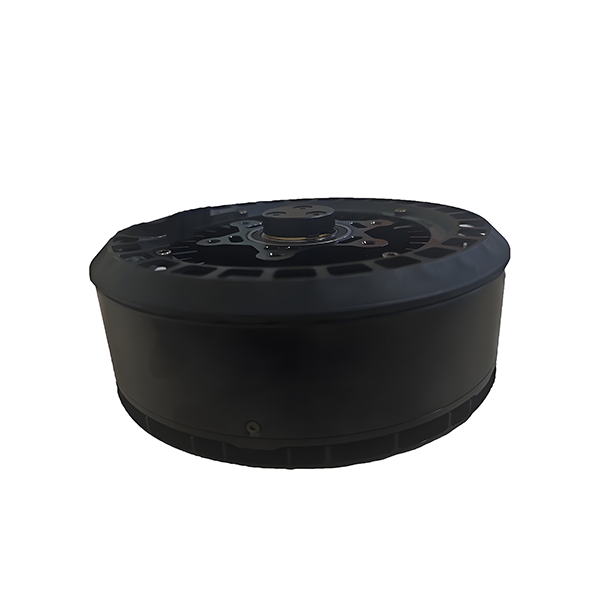

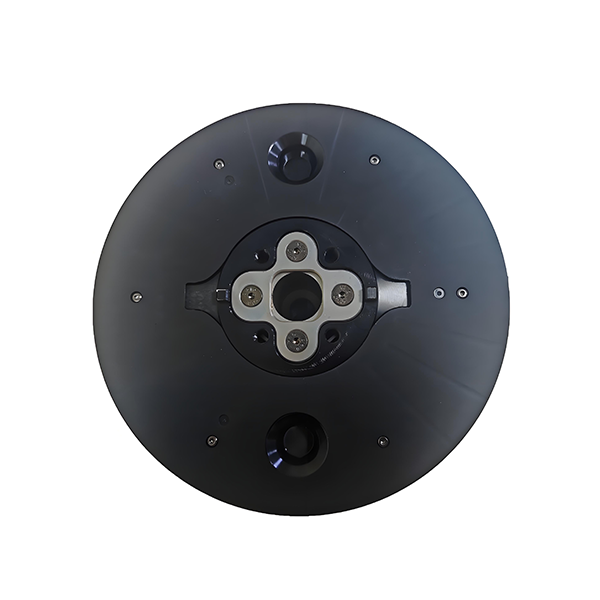

High – Torque & Long – Lasting Brushless DC Motor B14 Plus

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design
  • Overview
  • Parameter
  • Download
  • Similar Products
  • Recommended Combinations

B14 Plus motor is designed for heavy-lifting drones requiring high thrust and long service life. The core advantages of Huazhou plant protection motors lie in their high-efficiency power output, strong environmental tolerance, intelligent protection and low usage cost. These features make them the preferred power solution in the field of agricultural plant protection. Especially its FOC electronic control technology, IPX protection level and modular design fully meet the dual demands of reliability and economy for agricultural drones.

Features :

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design

Drive units applied in the fields of agricultural plant protection, main drive motors for electric vehicles, smart home, industrial automation and robotics.

Rated Current 130A
Rated Speed 1650RPM
Rated Power 4100W
Rated Torque 20.5-21Nm
No – load Current ≤5.5
No – load Speed 1700RPM/25V
Motor Internal Resistance 12
All Machine Weight 2200g
Motor Inductance 5.5±2
Number of Slot Poles 42N52P
Operating Temperature -10℃~65℃
Overall Machine Outer Diameter Ф154.8±0.2mm
