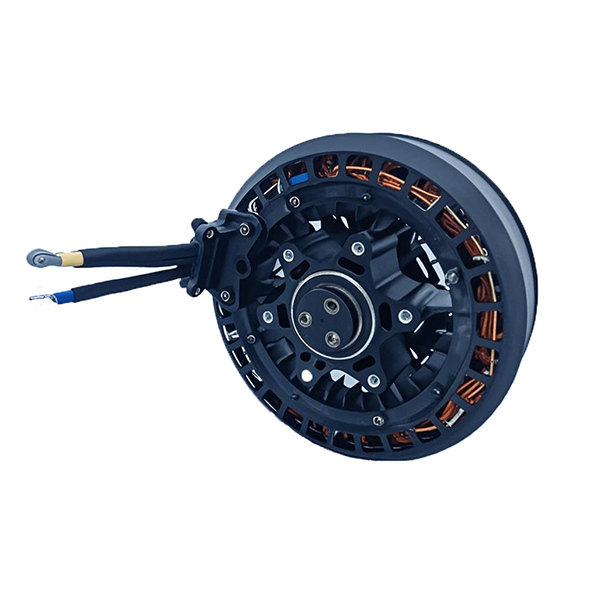

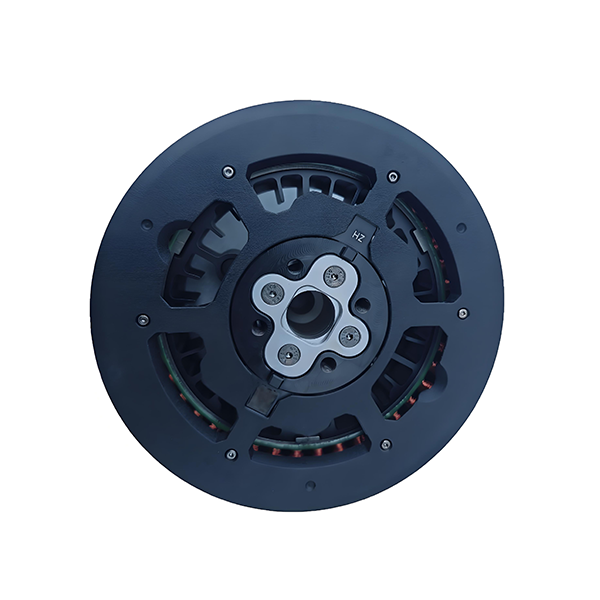

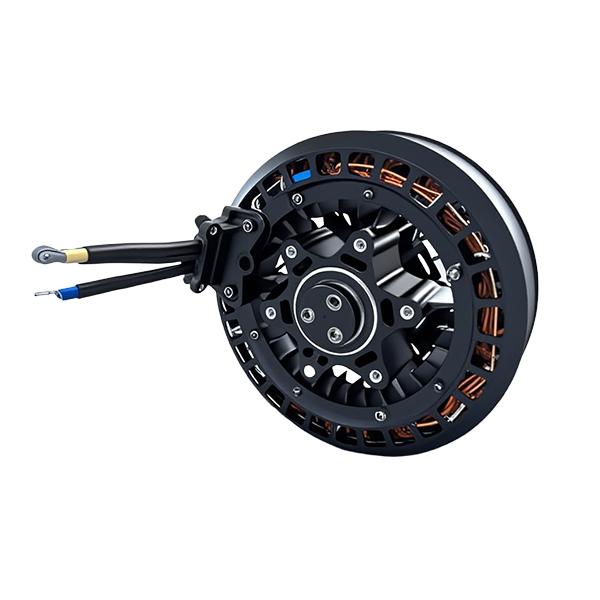

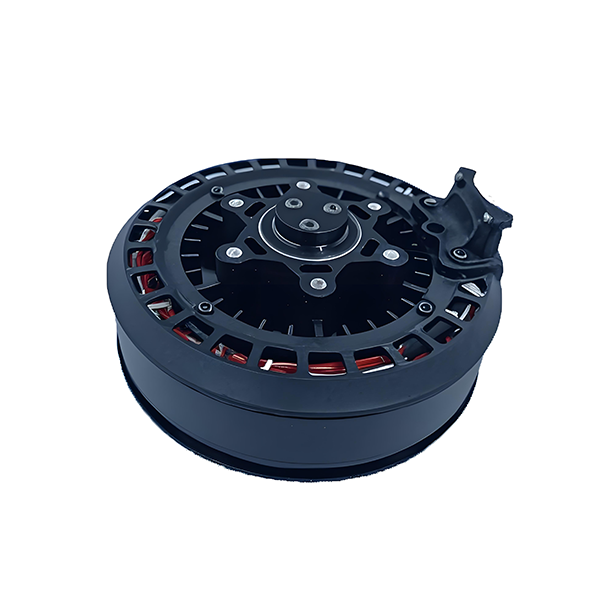

High – Torque & Long – Lasting Brushless DC Motor B14

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design
  • Overview
  • Parameter
  • Download
  • Similar Products
  • Recommended Combinations

B14 motor is designed for heavy-lifting drones requiring high thrust and long service life. The core advantages of Huazhou plant protection motors lie in their high-efficiency power output, strong environmental tolerance, intelligent protection and low usage cost. These features make them the preferred power solution in the field of agricultural plant protection. Especially its FOC electronic control technology, IPX protection level and modular design fully meet the dual demands of reliability and economy for agricultural drones.

Features :

  • High power density and lightweight
  • High efficiency and energy saving in
  • Dynamic response and precision control control flexible
  • Long life design

Applied to logistics drones transport heavy goods (e.g., medical supplies, industrial equipment), or to a wide range of agricultural UVA with high-capacity pesticide spraying.

Rated Current 46A
Rated Speed 1500RPM
Rated Power 2300W
Rated Torque 12Nm
No – load Current 4.5A
No – load Speed 1300~2500RPM
Motor Internal Resistance 21±3mΩ
All Machine Weight 1640g
Motor Inductance 12±17
Number of Slot Poles 42N52P
Operating Temperature -10℃~65℃
Overall Machine Outer Diameter (mm) Ф144.2±0.2
